Am2914

The Am2914 (see Figure 4-29) incorporates all of these desired features. It contains

  1. the latches
  2. mask register
  3. status fence register
  4. priority encoder
  5. vector hold register
  6. clear control
  7. incrementer
  8. comparator
  9. interconnection logic for expansion
One device handles up to eight interrupt sources.

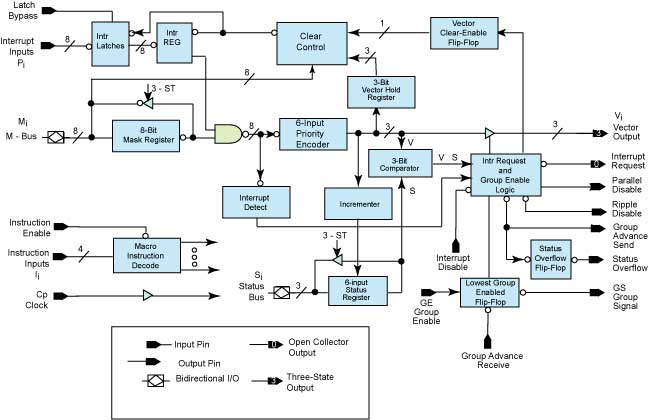

Figure 4-29 Am2914 block diagram

The instruction set for the Am2914 is shown in Table 4-2, and a program flow is shown in Figure 4-30 which diagrams where, within a microprogram structure, the various Am2914 instructions could appear.

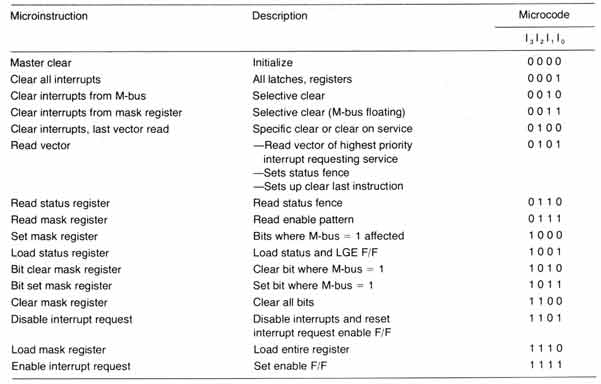

Table 4-2 Am2914 Instruction Set

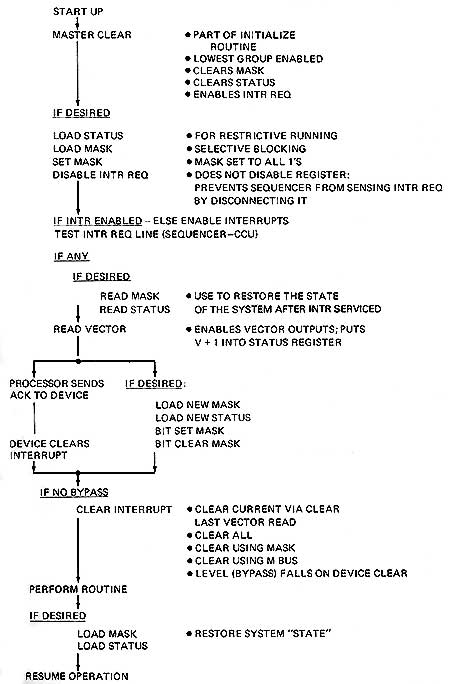

Figure 4-30 Sample usage of Am2914 instructions (flow)
