Simple Controller

Last Edit October 10, 1996; July 9, 2001

The very simplest microprogrammed controller is constructed from a PROM (assume that this means ROM or PROM) and a register, as shown in Figure 2-1. The load enable on the register is connected to the clock signals. The register outputs an address to the PROM memory, and this address is used to fetch the next microinstruction that is to be executed. No next-address logic is included or required. After a time delay equal to that needed to stabilize the register outputs, plus the read access time of the memory, the memory outputs both the control signals to the rest of the system and the next address to be loaded into the register. The PROM memory is also referred to as the control memory. The output from the memory must be stable before the next clock pulse (C_p):

C_p = t_{read access of memory} + t _{register Cp to output} + t _{setup time for register}

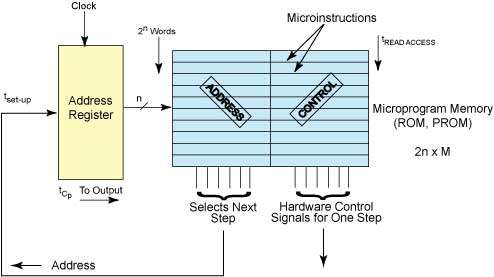

Figure 2-1 The Simplest Implementation of a Sequential Machine

The size of the memory is 2ⁿ words, with each word M bits long. The M bits are formed from the C control bits plus the n address bits required to specify the next instruction:

M = C + n

word width equals the number of control bits plus the number of next-address bits.

The programmer is free to place microinstructions anywhere in any order as long as each one references the next executable address. This system will run from clock power-up until clock power-down. Assume on power-up that the register is cleared and the first address executed is address 0. Since no address logic is provided, only one sequence is possible. This controller is suitable for process control (repetitive looping of a sequence).

Sequential Execution

A reduction in required PROM memory is possible by removing the requirement of the next-address field. This is reasonable because the microprogram can be loaded into PROM in its executed order as one long sequential routine, as diagrammed in Figure 2-2. In this case, the next microinstruction address is always equal to zero on startup.

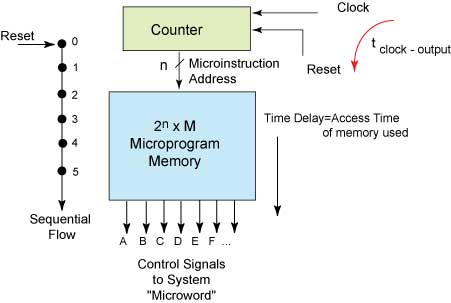

Figure 2-2 Sequential Control

The clock pulse width is determined by:

C_p = t_{read access} + t _{counter Cp to output}

which is approximately the same as before, since:

t_{read access} >>T_{Cp to output}

To derive the control portion of the microcode for with of the two control units described so far, assume a timing diagram exists. By digitizing the timing signals using the clock step and assuming all changes correspond to the rising edge of the clock, the microprogram control field is simply the binary word at each time slice. The procedure is shown in Figure 2-3.

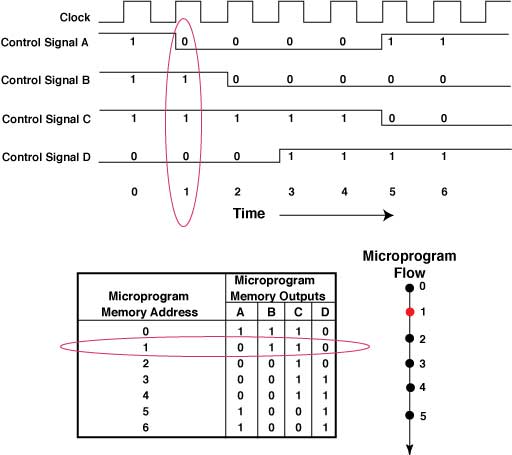

Figure 2-3 Sample Sequential Microcode (A) Desired Control. Assume that this is the desired control for some system. (B) Microcode and Flow. This is then the microcode for sequential execution.

Multiple Sequences

The controller may be made to execute multiple sequences by adding one control bit to the word width, the load control bit. This bit connects to the load control line of the loadable counter, as shown in Figure 2-4.

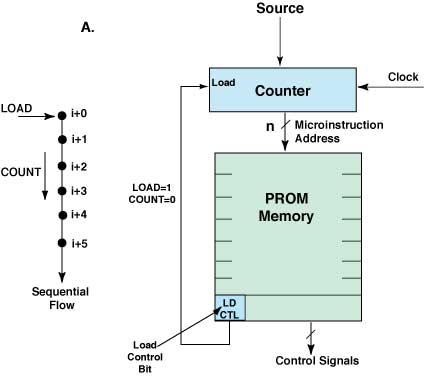

Figure 2-4 Multiple Sequence Controller (A) Controller Block Diagram

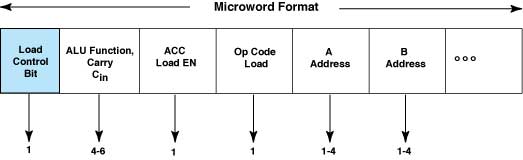

Figure 2-4 Multiple Sequence Controller (B) Microword Format

The data inputs to the counter receive the start address. The new start address is gated into the counter when the load control bit equals "1". The counter operates as a counter as long as the load control bit equals "0". Each microroutine or microinstruction sequence would contain a "1" in the load control field only in the last microinstruction of the sequence with a "0" in the load control filed in all other microinstructions of the sequence.

The size of the PROM memory is determined by the total number of microinstructions it must store. Since PROM memories come in only certain sizes, a "ballpark" estimate of the size is sufficient to make a selection. The smallest sizes (in the 1970's) were 32x8 (non-registered) and 512x18 (registered PROM). The number of address bits and the size of the counter are determined by the amount of memory that is used or that is anticipated to be used in later, planned enhancements to the system. Worst-case sizing estimates must be made in these cases.
